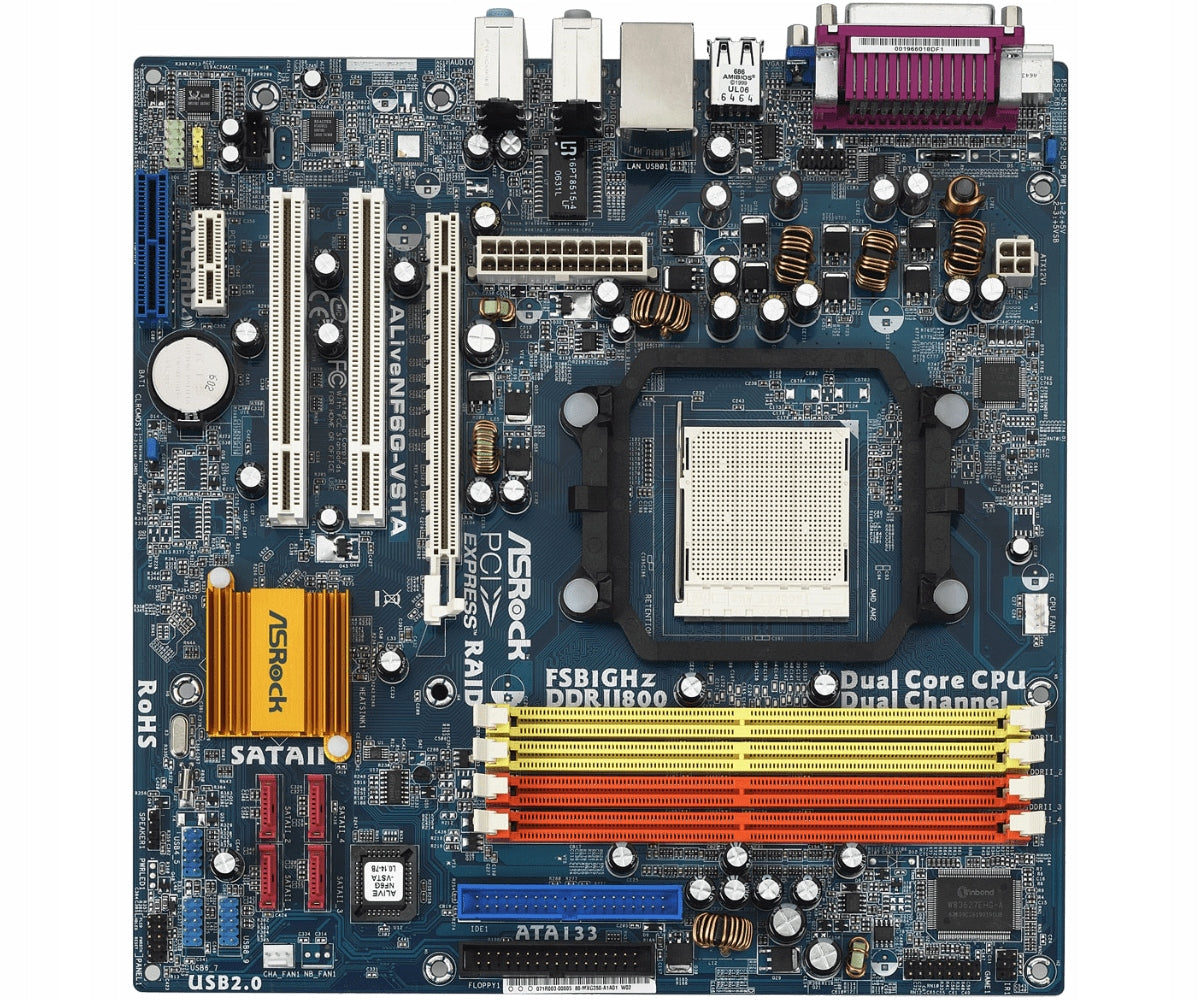

Płyta główna ASRock ALIVENF6G-VSTA 2.02 ATX

Support for Socket AM2+ / AM2 processors: AMD Phenom™ FX / Phenom / Athlon 64 FX / Athlon 64 X2 Dual-Core / Athlon X2 Dual-Core / Athlon 64 / Sempron processor

NVIDIA® GeForce 6100 / nForce 430 or GeForce 6150SE / nForce 430 Chipsets

AMD LIVE!™ Ready

Supports Dual Channel DDR2 1066/800/667/533 (4 x DIMM slots) non-ECC, un-buffered memory, Max. capacity up to 16GB

ASRock AM2 Boost: ASRock Patented Technology to boost memory performance up to 12.5%

Integrated NVIDIA® GeForce6-class graphics DX9.0 VGA, Pixel Shader 3.0, Max. shared memory 256MB

1 x PCI Express x16 slot

Untied Overclocking : During Overclocking, FSB enjoys better margin due to fixed PCIE/ PCI Buses

Hybrid Booster - ASRock Safe Overclocking Technology

4 x SATA2 3.0 Gb/s, support RAID (RAID 0, RAID 1, RAID 0+1, RAID 5, JBOD), NCQ, and Hot Plug functions

HDMI_SPDIF header, providing SPDIF audio output to HDMI VGA card, allows the system to connect HDMI Digital TV/projector/LCD devices.

7.1 CH Windows® Vista™ Premium Level HD Audio (ALC888 Audio Codec), 10/100 Ethernet LAN

Windows® Vista™ Premium Logo Ready

HD 8CH I/O: 4 ready-to-use USB Ports, HD 7.1 channel audio jacks

CPU

- Support for Socket AM2+* / AM2 processors: AMD Phenom™ FX / Phenom / Athlon 64 FX / Athlon 64 X2 Dual-Core / Athlon X2 Dual-Core / Athlon 64 / Sempron processor

- AMD LIVE!™ Ready

- Supports AMD's Cool 'n' Quiet Technology

- FSB 1000MHz (2.0 GT/s)

- Supports Untied Overclocking Technology

- Supports Hyper-Transport Technology

*If you use AM3 / AM2+ CPU on AM2 chipset motherboard, the system bus speed will downgrade from HT3.0 (5200 MT/s) to HT1.0 (2000 MT/s), but the CPU frequency will not be influenced.

Chipset

- NVIDIA® GeForce 6100 / nForce 430 or GeForce 6150SE / nForce 430

Memory

- Dual Channel DDR2 memory technology

- 4 x DDR2 DIMM slots

- Supports DDR2 1066*/800/667/533 non-ECC, un-buffered memory

- Max. capacity of system memory: 16GB**

*Support with AM3 / AM2+ CPU.

**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® XP and Windows® Vista™. For Windows® XP 64-bit and Windows® Vista™ 64-bit with 64-bit CPU, there is no such limitation.

BIOS

- 4Mb AMI BIOS

- AMI Legal BIOS

- Supports "Plug and Play"

- ACPI 1.1 Compliance Wake Up Events

- Supports Jumperfree

- SMBIOS 2.3.1 Support

Graphics

- Integrated NVIDIA® GeForce6-class graphics

- DX9.0 VGA, Pixel Shader 3.0

- Max. shared memory 256MB

Audio

- 7.1 CH Windows® Vista™ Premium Level HD Audio (ALC888 Audio Codec)

LAN

- Realtek PHY RTL8201CL

- Speed: 10/100 Ethernet

- Supports Wake-On-LAN

- Supports PXE

Slots

- 2 x PCI slots

- 1 x PCI Express x16 slot

- 1 x PCI Express x1 slot

- 1 x HDMR slot

Connector

- 4 x SATA2 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 0+1, RAID 5, JBOD), NCQ, and Hot Plug functions

- 1 x ATA133 IDE connector (supports 2 x IDE devices)

- 1 x Floppy connector

- 1 x IR header

- 1 x Game header

- 1 x COM port header

- 1 x HDMI_SPDIF header

- CPU/Chassis FAN connector

- 20 pin ATX power connector

- 4 pin 12V power connector

- CD in header

- Front panel audio connector

- 3 x USB 2.0 headers (support 6 USB 2.0 ports)

Rear Panel I/O

HD 8CH I/O

- 1 x PS/2 Mouse Port

- 1 x PS/2 Keyboard Port

- 1 x VGA Port

- 1 x Parallel Port (ECP/EPP support)

- 4 x Ready-to-Use USB 2.0 Ports

- 1 x RJ-45 Port

- HD Audio Jack: Side Speaker / Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone

Unique Feature

Hybrid Booster:

- CPU Frequency Stepless Control

- ASRock U-COP

- Boot Failure Guard (B.F.G.)

- ASRock AM2 Boost: ASRock Patented Technology to boost memory performance up to 12.5%

Support CD

- Drivers, Utilities, AntiVirus Software (Trial Version)

Accessories

- Quick Installation Guide, Support CD, I/O Shield

- Floppy/ATA 133 Cables

- 1 x SATA Data Cable (optional)

- 1 x SATA 1 to 1 Power Cable (optional)

- 1 x COM Port Bracket

- 1 x HDMI_SPDIF Cable (optional)

Hardware Monitor

- CPU Internal Temperature Sensing

- CPU Ambient Temperature Sensing

- Chassis Temperature Sensing

- CPU Fan Tachometer

- Chassis Fan Tachometer

- CPU Quiet Fan

- Voltage Monitoring: +12V, +5V, +3.3V, Vcore

Form Factor

- Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm

OS

- Microsoft® Windows® 2000 / XP / XP Media Center / XP 64-bit / Vista™ / Vista™ 64-bit compliant
